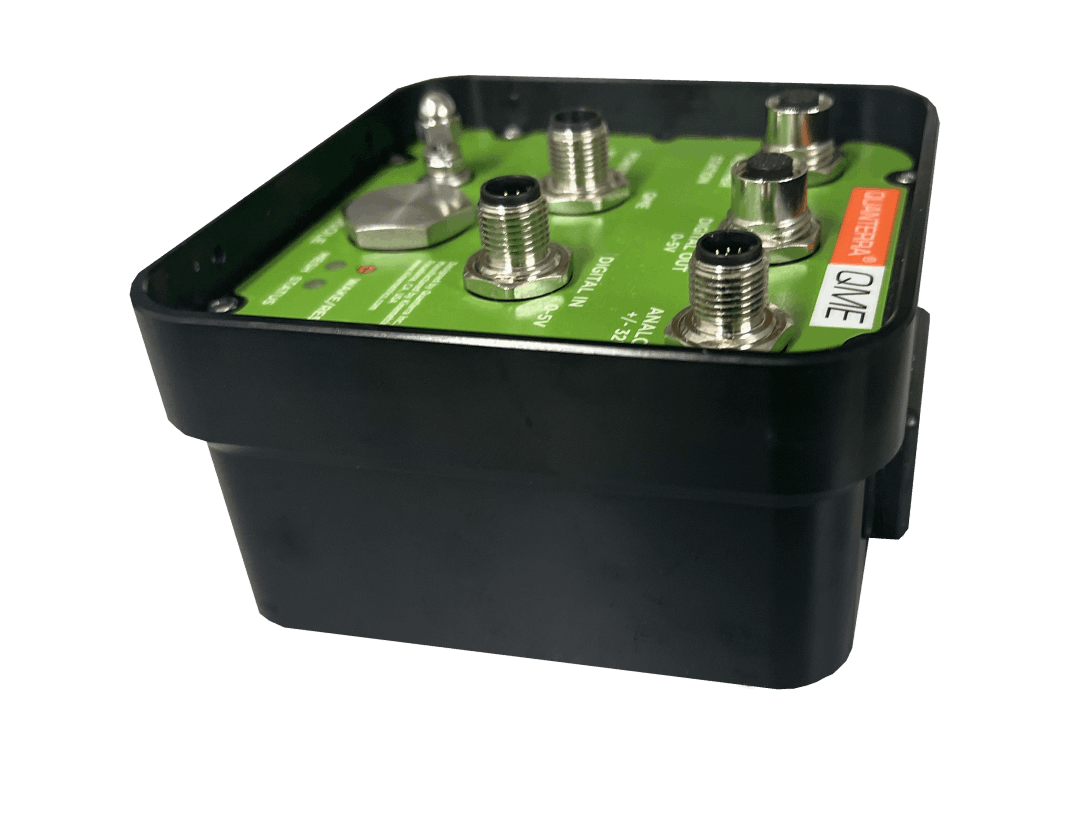

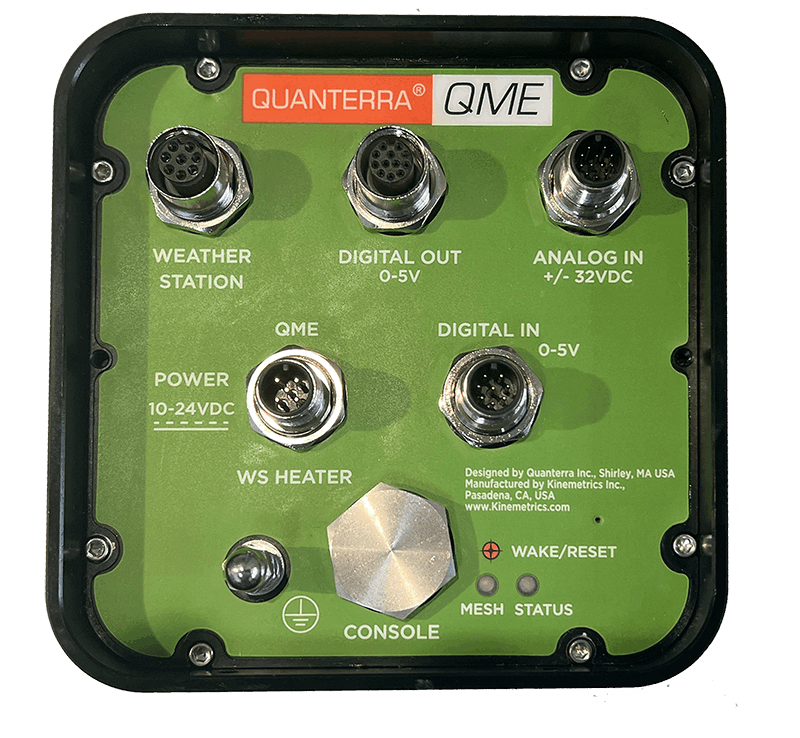

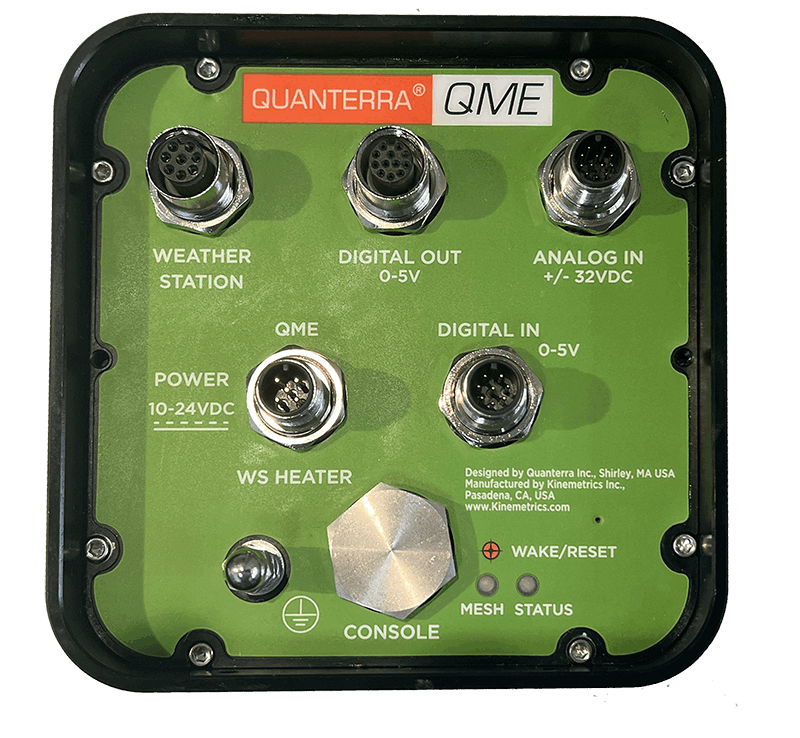

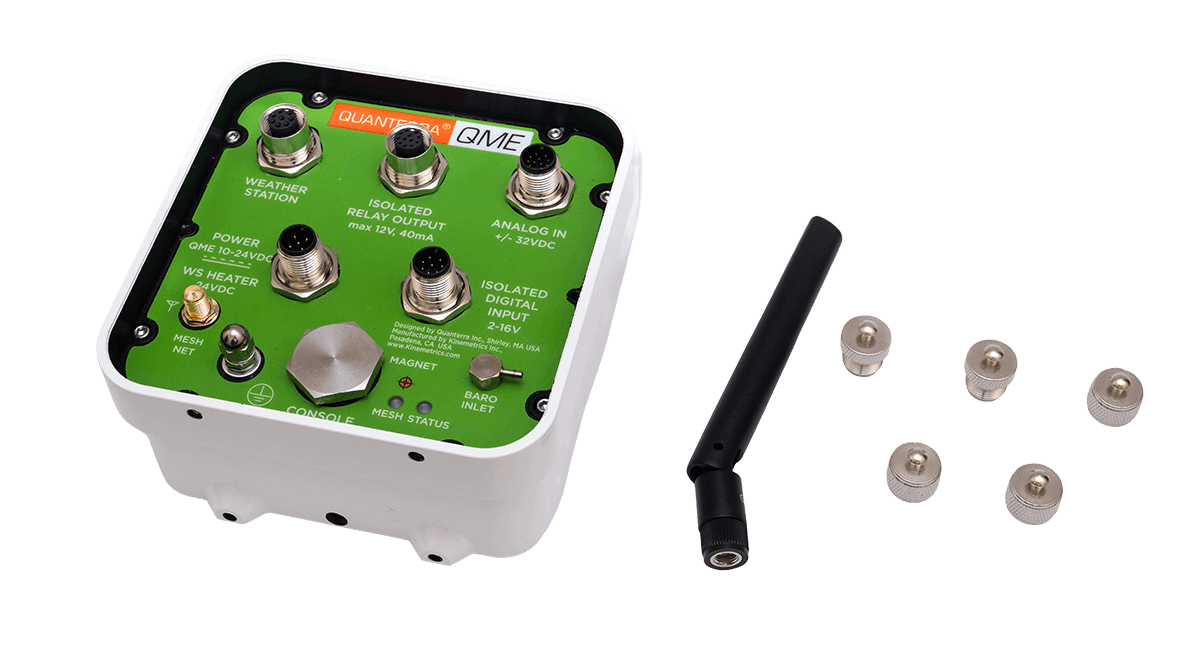

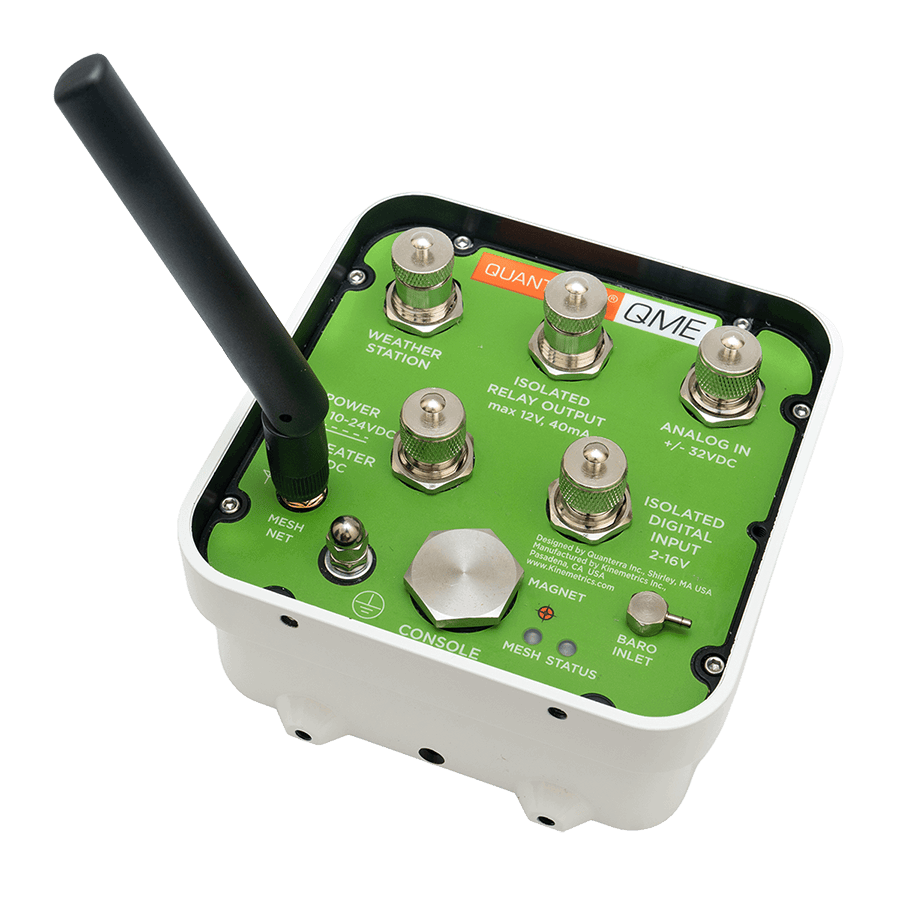

QME

Ultra Low-Power, Wireless. Modular, Encrypted Instrument Interface

Features

The QME is a secure wireless peripheral for the Quanterra® Q8 ultra-high resolution data acquisition system. The QME enables the mesh network capabilities of the Q8, wirelessly extending its reach to weather stations and other critical sensors.



•  Extremely low power, light weight and small size
• Fully Integrated into the Q8 System
•  Modular Expansion
•  Built-in Independent Monitoring
•  Analog Monitoring



•  Digital Monitoring
•  Digital Controls
•  Mesh Enabled
•  Survivability



The Future of Mesh Extenders


Specifications

• Serial Interface to Weather Station
• Digital In/Out Four isolated digital inputs and four isolated           relay outputs
• Analog Input 3 single-ended inputs 64Vpp, 2 differential              inputs 64 Vpp
• Sample Rate 1 Sample Per Second
• Time Accuracy <1μs (when connected to Q8 with GNSS lock)
• Cross-talk Typical better than -140dB
• Temperature Fully specified -40 to +60o C
• Security Over air 128-bit encryption
• Internal Barometer 300-1200 hPa
• Power 12VDC nominal (10-24 VDC operational), 35mW with          LEDs off
• Physical Sealed, machined enclosure, 4.8 x 4.9 x 2.9 in, 500        grams, IP67 or better
• Mesh Capable Up to 100 meters
